MADRIX RADAR

Video. Quickly dive in.




Downloads & Documents

Find all downloads, release notes, and more here:

Download




First User Impressions.

"Before MADRIX RADAR, remote device management (RDM) monitoring had to be done manually/visually on an individual fixture level, therefore we were limited to simultaneously monitoring at most a handful of devices at a time. RADAR, with its automated monitoring capabilities, is the first tool in the world to enable RDM technology at scale, making RDM practical where it is needed most: lighting installations with thousands of fixtures. Then add the big data capabilities like trend monitoring, analytics-based maintenance, and automated alerting... MADRIX RADAR really is a game changer."
"Gratulation und großes Lob für die neue Software MADRIX RADAR! Alles übersichtlich dargestellt, intuitiv zu bedienen und extrem schnell – genial gemacht. Besten Dank für dieses ultimative Tool, das keine Wünsche offen lässt."






Management. Manage all of your devices the remote way. Manage them the smart way.

Everywhere, lighting designs beautifully light up the world all around us. And clients expect them to do so without failure, each and every day. Behind the scenes, the lighting industry faces the complex aspects of modern technologies. Increasingly large projects become increasingly difficult to manage and maintain.



That is why today‘s DMX lighting fixtures are equipped with Remote Device Management. It is a two-way communication for receiving instructions as well as sending out feedback. When devices report back data, you gain access to a whole new level of available information, insights, and control. MADRIX RADAR is the complete toolbox to make the most of this data; automatically and efficiently.



Supervise all of your lighting fixtures in a single software. Handle large amounts of RDM devices. It is a new kind of application that opens up entirely new possibilities for you and your clients. MADRIX RADAR includes automatic fixture patching, fully automatic 24/7 device monitoring, automatic e-mail notifications, and much more.



Transform how you work with luminaires. Easily configure settings remotely. Let the software monitor devices automatically for you. Quickly see the results in graphical overviews at a single glance. That means that your setup and maintenance processes are much faster, much easier, and much more cost-efficient than ever before.



Build a database of past sensor data and see the progression of device parameters, such as temperature and operating hours. Exchange devices that are likely to fail soon, before they do. Make your maintenance costs much more predictable by planning them more effectively in advance.

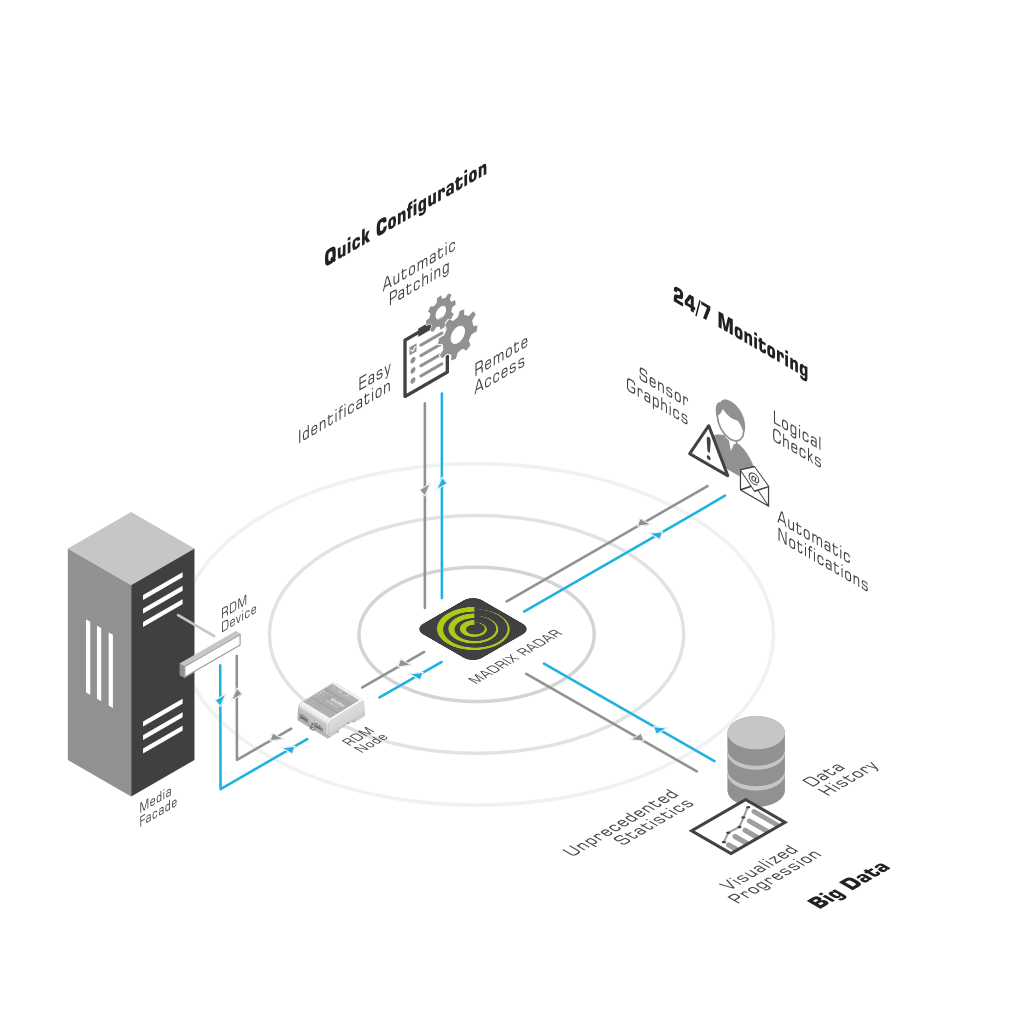

Overview. Visualize how it works.

Provide unparalleled support and supervision for each installation.
Start offering all-new benefits to your clients.
Unleash the full potential of RDM.

MADRIX RADAR Software







Configuration. Meet your favorite new addressing tool.

Convenient Remote Access
Easily set up your RDM devices remotely. This means you can perform any configuration conveniently from your computer; instead of requiring direct access to the devices themselves in the truss, in the ceiling, or on the facade.



Simplified Fixture Addressing
Avoid the complicated procedure to manually set up all of a project‘s lighting fixtures by hand before they can be mounted. Freely modify their settings, such as the important DMX start address, after any installation has taken place.



Incredibly Fast Workflows
Drastically reduce the time-consuming process of configuring a large number of devices. Use the built-in search function and change settings of a single device or select several entries to quickly make multiple changes at once.



Incredibly Powerful Automation
Let the software automatically patch all fixtures in a single DMX universe or across the entire range of addresses. Simply use drag and drop to put them in the correct order. Setting up DMX addresses has never been faster.



Useful Fixture Discovery
Use the built-in highlight mode to let a fixture flash with full-on white for quick identification of fixtures in your installation. See if a device correctly responds to DMX commands or if the lighting fixtures are addressed correctly in a row.



Full Support
MADRIX RADAR supports all RDM parameters detailed in the official protocol specifications of ANSI E1.20 and ANSI E1.37-1 over Art-Net (including the ArtRdm package). All fixed parameters (PIDs for Set and Get) and manufacturer-specific parameters are included.



MADRIX RADAR Configuration





Monitoring. Fully automatic 24/7 device monitoring with automatic notifications.

Continuous Monitoring
Let the software monitor all of your devices 365 days a year, 7 days a week, 24 hours a day. It does so fully automatically without any required supervision. This simply wasn‘t possible before.



Making Sensor Data Understandable
MADRIX RADAR checks the status of devices, such as voltage, temperature, status, power cycle, life cycle, and more. Graphical overviews allow you to quickly see if a sensor value is within its specified limits or out of its valid range.



Event Reports
In addition to merely requesting and receiving information, the software will apply its own logical routines in order to create events for you. By probing and validating incoming data, MADRIX RADAR provides actionable reports for you.



Automatic Notifications
If MADRIX RADAR detects any irregularities, you can receive automatic status updates within the software, run a PowerShell script, or let the system conveniently send you e-mails. In short, you are always up to date.



MADRIX RADAR Monitoring





The MADRIX System. Take advantage of high-quality software and high-quality hardware.



MADRIX RADAR is an independent software that allows you to choose compatible RDM nodes.

You gain the enormous advantage with MADRIX RDM nodes of running a fully integrated system. Our MADRIX hardware processes RDM data packages in a way that does not result in interference with DMX data packages during full and live operation, which could lead to visual flickering or other signal interruptions. MADRIX interfaces manage these data streams highly efficiently and intelligently.



License Model. Integrate flexibly into your projects.







Software License





RDM Devices/
Sub-Devices


Management


Configuration


Monitoring

MADRIX RDM Nodes
(MADRIX STELLA)


Free
(Included In Hardware Purchase)



All connected devices are
automatically unlocked for free.







MADRIX STELLA
Learn more about MADRIX STELLA

Third-Party RDM Nodes
& MADRIX RADAR License


Demo




2








MADRIX RADAR fusion small

64








MADRIX RADAR fusion medium

512








MADRIX RADAR fusion large

4,096










MADRIX KEY







MADRIX RDM Nodes (MADRIX STELLA)

No additional software license is required.

All connected devices are automatically unlocked for free.


Management

Configuration

Monitoring

MADRIX STELLA
Learn more about MADRIX STELLA



Third-Party RDM Nodes
& MADRIX RADAR License

Demo

Unlocks 2 RDM devices/sub-devices without a license.

Management

Configuration

Monitoring



MADRIX RADAR fusion small

Unlocks 64 RDM devices/sub-devices.

Management

Configuration

Monitoring

MADRIX KEY



MADRIX RADAR fusion medium

Unlocks 512 RDM devices/sub-devices.

Management

Configuration

Monitoring

MADRIX KEY



MADRIX RADAR fusion large

Unlocks 4,096 RDM devices/sub-devices.

Management

Configuration

Monitoring

MADRIX KEY







MADRIX RADAR Software



Big Data. Access device data you never knew was obtainable.

Invaluable Data History
Leverage the valuable information that a device‘s data history can provide. See individual time series graphically over time. Access data records in order to see the progression, find trend lines, or spot probable issues.



Smart Data Management
Present comprehensive statistics to your clients based on the data that MADRIX RADAR is collecting. Replace failing devices and avoid replacing the ones that need no immediate replacement.



Convenient Features
You can freely enable or disable if data points are recorded, for example during setup and construction times, or change the time intervals at which data is recorded.



MADRIX RADAR Big Data



License Model. Unlock the above features optionally and benefit even more.





Big Data





Available as a separate
1-year MADRIX RADAR big data license, which can be renewed.



MADRIX 5 KEY

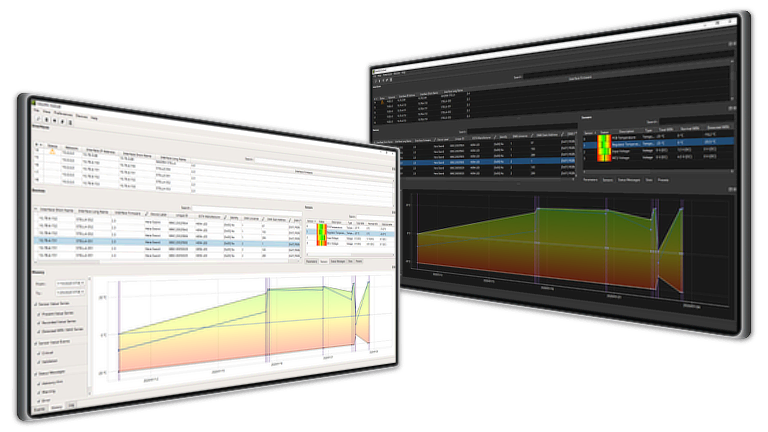

Screenshots. Have a closer look.

MADRIX RADAR Screenshots





Technical Specifications

User-Interface Languages

Deutsch (German), English, Español (Spanish), Français (French), Italiano (Italian), 日本語 (Japanese), Português brasileiro (Brazilian Portuguese), русский (Russian), Türkçe (Turkish), 简体中文 (Simplified Chinese)

Supported Operating Systems

Microsoft Windows 10
64 bit only

Technical Standards

Art-Net (I, II, 3, 4, incl. ArtRdm), RDM (ANSI E1.20, ANSI E1.37-1)

RDM Role

Sends commands and data requests to RDM Responders via ArtRdm (Manager)

Supported Databases

SQLite In Main Memory
SQLite File
PostgreSQL Server (Via Local Computer Or Remote Server Connections)

License Requirements

MADRIX RADAR licenses require a valid, metallic MADRIX KEY

Demo Version

Download MADRIX RADAR from www.madrix.com







MADRIX KEY. Your key to the world of MADRIX.



MADRIX KEY



Flexible Usage

The MADRIX KEY is a USB dongle that unlocks the features or output for the MADRIX 5 Software or MADRIX RADAR Software by holding the corresponding license. You can freely switch between different PCs as it is not bound to a specific system. It only needs to be activated online once.

What's In The Box

The beautiful, high-quality box includes 1x empty MADRIX KEY, 1x USB flash drive incl. MADRIX 5 Software and MADRIX RADAR Software, 1x lanyard, and 1x quick start guide. All additional software tools and all user manuals are provided digitally.




Download And Test MADRIX RADAR For Free

And

Contact A Reseller For Your Individual Quote
