New Fixture Grouping
Hi,
It's great to see that the mapping can use the new Fixture Groups as a preset, but it looks like the map that gets used is still only a bounding box of the wides and tallest area of that group. Is there a way to mask other areas?
As a quick test I created a cross shaped group within the default 50x50 matrix. It would be great if the mapping function limited output to only those pixels, and not the "bounding box" of the whole area. Ideally the mapped layer output should mirror the pixel group from the patch editor. Is there a way to do that now? or will that be added in the future?

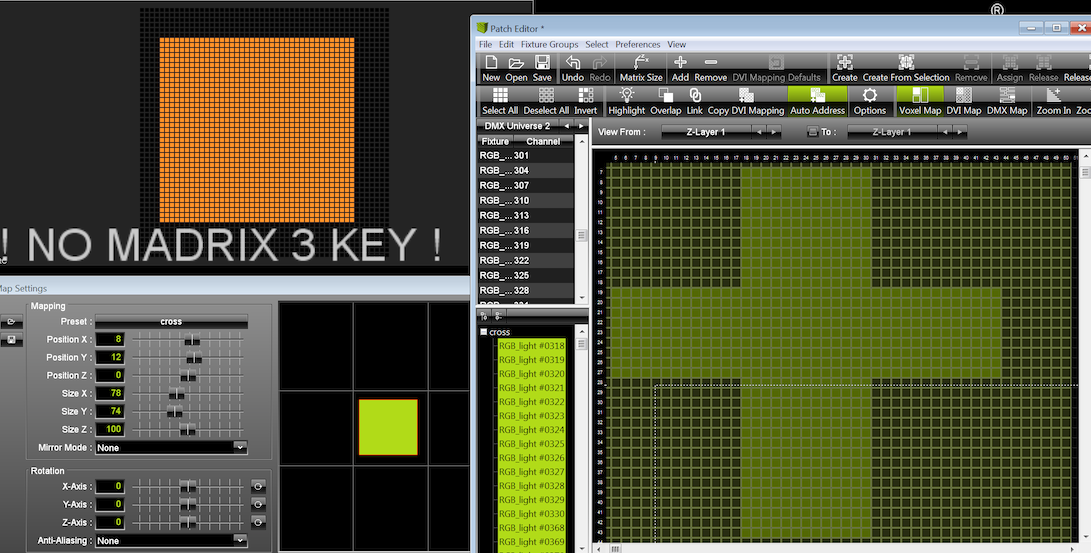

See the attached image for more info.
Thanks!!
Nathan
It's great to see that the mapping can use the new Fixture Groups as a preset, but it looks like the map that gets used is still only a bounding box of the wides and tallest area of that group. Is there a way to mask other areas?
As a quick test I created a cross shaped group within the default 50x50 matrix. It would be great if the mapping function limited output to only those pixels, and not the "bounding box" of the whole area. Ideally the mapped layer output should mirror the pixel group from the patch editor. Is there a way to do that now? or will that be added in the future?
See the attached image for more info.
Thanks!!
Nathan
- Attachments
-
- Madrix New Group fixtures function.
- madrixCross.png (280.47 KiB) Viewed 33777 times
Re: New Fixture Grouping
Hi Nathan,
.
it is correct, currently it is just the bounding box like you describe.
Because MADRIX effects render always in a rectangle it has no effect if the pixel inbetween the bounding box are mask out or not, except the look of the previews.
But to mask areas (shapes) like in your example it make sense and we like to develop such a feature in the future. But we have no time scedule for this.
.
it is correct, currently it is just the bounding box like you describe.
Because MADRIX effects render always in a rectangle it has no effect if the pixel inbetween the bounding box are mask out or not, except the look of the previews.
But to mask areas (shapes) like in your example it make sense and we like to develop such a feature in the future. But we have no time scedule for this.
