Fixture Count Limit Per Universe

[EddL]

I have created 4 different fixtures in the fixture library and loaded these into madrix. When I come to add them to the patch I am limited to "Fixture Count Limit Per Universe" = 1.

One of the fixtures I have created is 19px, RGBW so it's 76 channels. I should be able to get 6 fixtures per universe.

Usually when I do patch from the standard library "Generic RGBW 1 pixel" it will automatically work out how many fixtures per universe but with this new fixture it automatically defaults to 1 per universe?

I can't find out how to change this any where in the manuals

[Schulze]

Hi EddL,

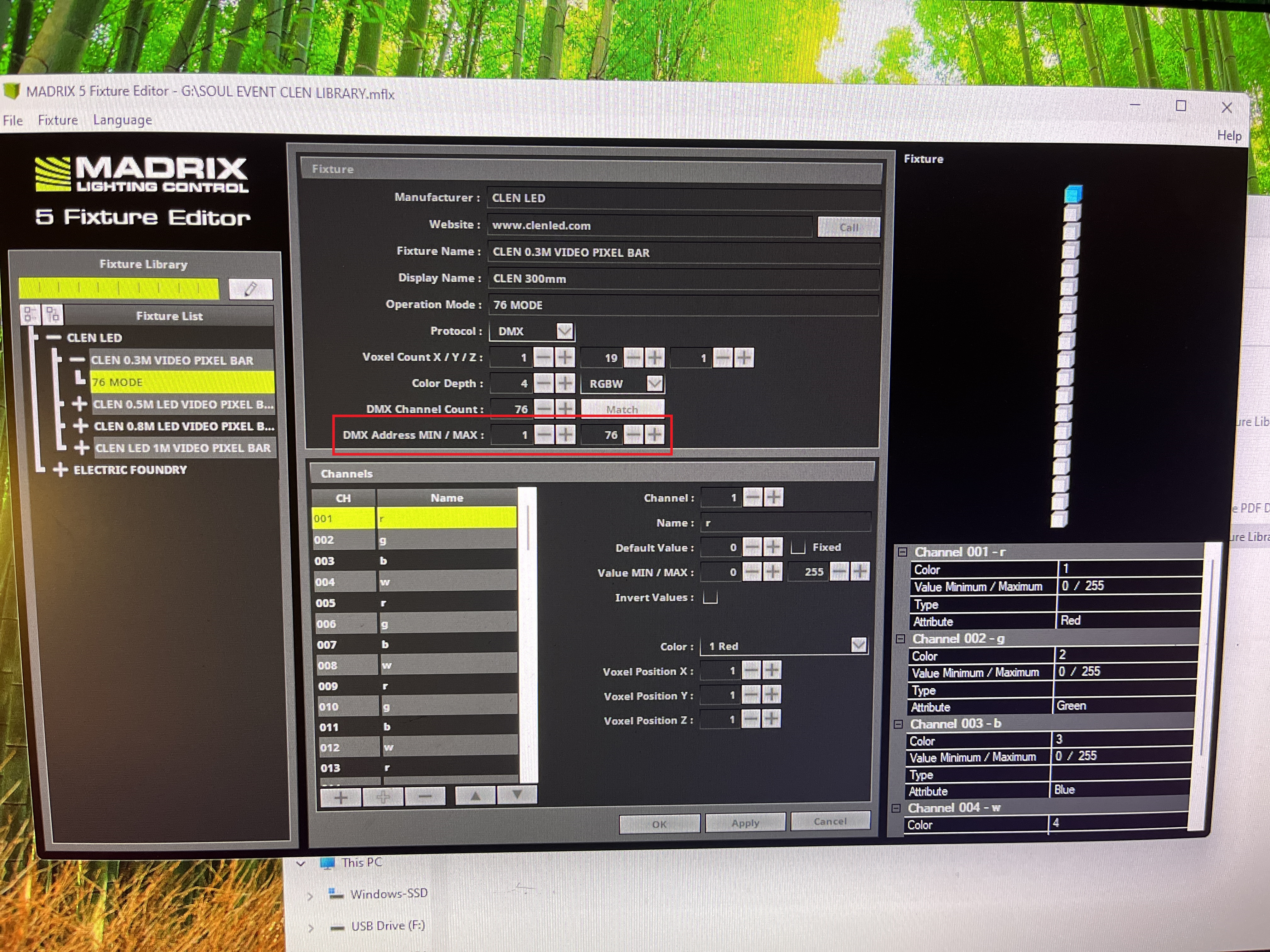

This is because "DMX Address MIN / MAX" is set to 1 - 76. Please change the minimum to 1 and the maximum to 512.

Here you will find the setting:
